Electric Sunroof Parts List Diagram

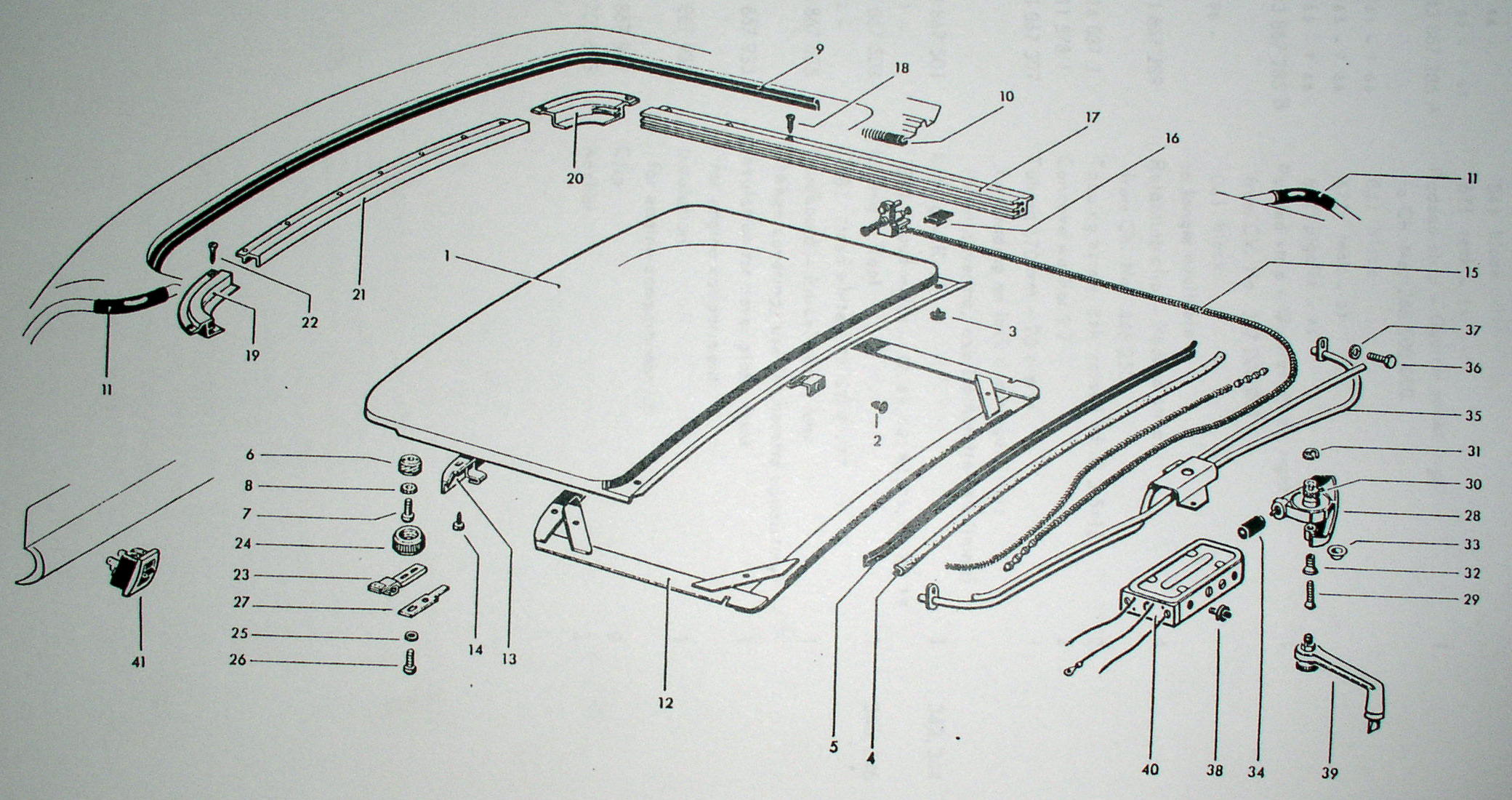

The official T34 Parts List book has a section for Electric Sunroof parts with a very useful exploded diagram.
1 = steel sliding roof panel (345 877 071), need 1
2 = roof panel stop plug, rear (345 877 201), need 1
3 = sliding roof panel plug, rear (117 877 205A), need 2
4 = sliding roof panel rear weatherstrip, rear foam rubber (345 877 209), need 1
5 = sliding roof panel rear weatherstrip, rear (345 877 213), need 1
6 = threaded plate M32x1 (313 877 217), need 2
7 = fillister head screw AM 6x10 (N 14 138 1), need 2
8 = lock washer A6.4 (N 12 105 1), need 2
9 = sliding roof panel front weatherstrip (345 877 223), need 1
10 = beading (345 877 227), need 1
11 = water drain hose, front & rear (313 877 233), need 2
12 = roof panel lining frame (345 877 259), need 1
13 = retaining channel frame, front (345 877 279), need 1
14 = fillister head tapping screw 2.9x13 (N 13 954 1), need 8
(15) = left rear guide with cable (345 877 305), need 1
15 = right rear guide with cable (345 877 306), need 1
16 = rear guide piece (313 877 307), need 2
(17) = right guide rail (345 877 356), need 1
17 = left guide rail (345 877 355), need 1
18 = csk raised head tapping screw B3.9x9.5 (345 877 357), need 6
19 = left front guide rail corner piece (345 877 365), need 1
20 = right front guide rail corner piece (345 877 366), need 1
21 = front cover channel (345 877 369), need 1
22 = csk head tapping screw B3.9x9.5 (345 877 357), need 11
23 = sliding roof panel front guide (313 877 481), need 2
24 = knurled nut M32x1 (313 877 495), need 2
25 = spring washer B5 (N 12 225 1), need 4
26 = fillister head screw AM 5x15 (N 14 131 2), need 4
27 = front guide lock plate (345 877 499), need 2
28 = sliding roof drive gear (345 877 701), need 1
29 = csk head screw AM 4x25 (N 14 262 1), need 2
30 = winding gear pinion (313 877 407), need 1
31 = circlip 5x0.6 (N 12 405 1), need 1
32 = drive gear attachment adjusting screw (345 877 721), need 2
33 = drive gear cap (345 877 725), need 1
(34) = drive shaft 132mm by 5 3/16" (345 877 731), need 1 [to chassis #345 050 861]
(34) = drive shaft 100mm by 3 15/16" (345 877 731A), need 1 [from chassis #345 050 862 to 348 038 809]
34 = drive shaft 30mm by 1 3/16" (345 877 731B), need 1 [from chassis #348 038 810]
(35) = cable guide tube (345 877 735), need 1 [to chassis #348 038 809]
35 = cable guide tube (345 877 735A), need 1 [from chassis #348 038 810]
36 = hex head bolt M 4x15 (N 10 261 1), need 2
37 = shake-proof washer A4.3 (N 12 121 2), need 2
38 = motor rubber mounting (345 877 743A), need 4 [from chassis #348 038 810]
-- = motor bonded-rubber mounting (345 877 743), need 2 [to chassis #348 038 809]
39 = sliding roof winder handle (345 877 997A), need 1
(40) = sliding roof motor 6V (345 959 601), need 1 [to chassis #346 500 000]
(40) = sliding roof motor 12V (345 959 605), need 1 [from chassis #347 000 001 to #348 038 809]
40 = sliding roof motor 6V (345 959 605A), need 1 [from chassis #348 038 810]
(41) = sliding roof motor switch (345 959 621), need 1 [to chassis #348 003 127]
41 = sliding roof motor switch (345 959 621A), need 1 [from chassis #348 003 128]
